About Products
Technology and emotion at the same time!
POSEIDON auto dishwasher Co.,Ltd will try our best effort for the manufacturing of safe,
convenient and long lasting products, and we will dedicate ourselves to be recognized as best company
by thinking from the view of customers.

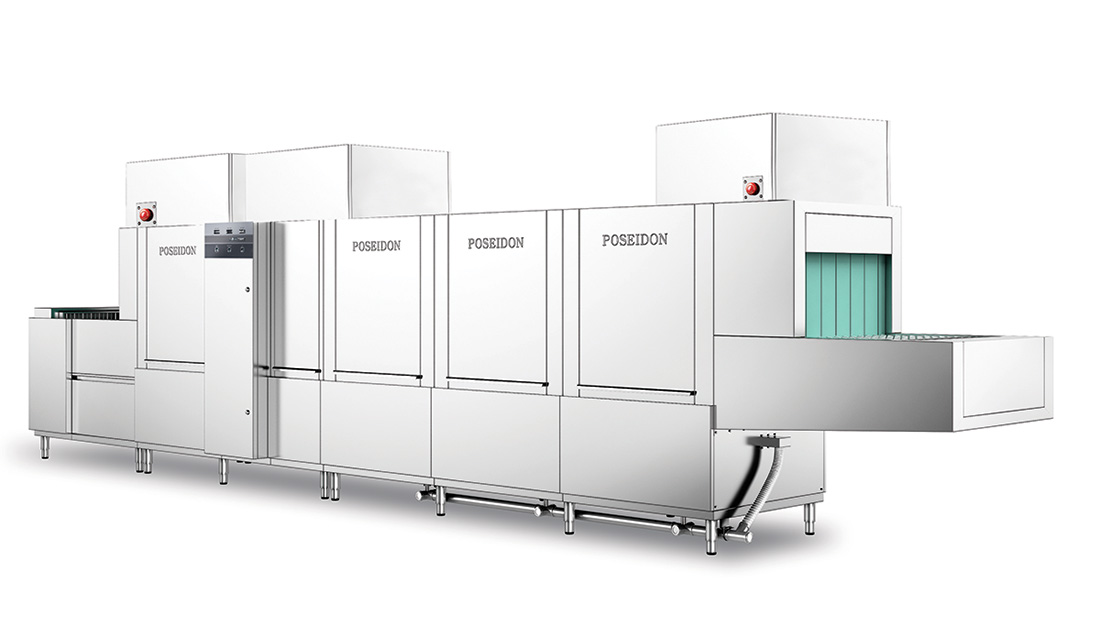

PDF-2000
The Flight Dishwasher is designed to maximize space efficiency and can be manufactured in small to large capacities.
It features stainless steel spray nozzles, automatic water supply, and a built-in heating system,
with rinsing performed using a high-temperature sterilization method.
Operation is simple with one-touch controls, making it easy and convenient for anyone to use.
It features stainless steel spray nozzles, automatic water supply, and a built-in heating system,
with rinsing performed using a high-temperature sterilization method.
Operation is simple with one-touch controls, making it easy and convenient for anyone to use.
- Public Procurements ID
- 22862750 PDF-2000G
- 21776595 PDF-2000DG
- 24026500 PDF-2000E
- 24847550 PDF-2000DE
- 21776589 E/S-100

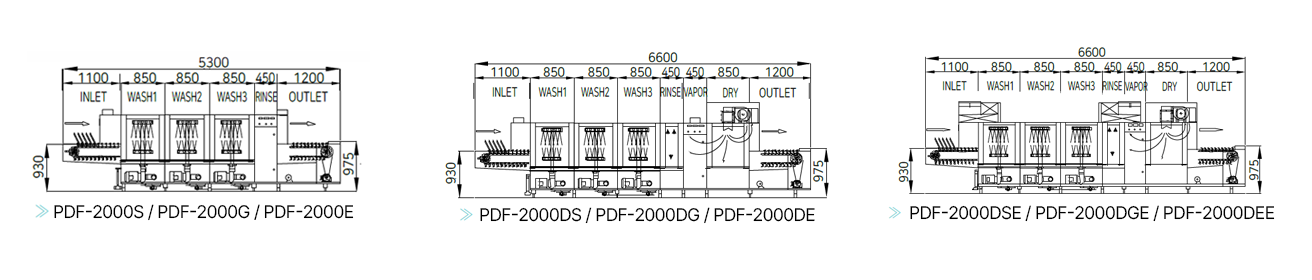

- PDF - 2000 SERIES
- Safety Features : Equipped with an operation safety device and a door-open safety device.
- Types : Gas, Electric, or Steam models; optional Energy Recovery System.
| Model | Size (L × W × H) |
Cleansing Capacity (food tray/Hr) |
Tank capacity (L × Number of tanks) |
Washing Pump (Kw × Number of Pumps) |
Pump capacity (L/min) |
Operating Motor (Kw) |
Rinsing capacity (L/Hr) |
electrical capacity | Steam Consumption (Kg/Hr) |
Steam Pipe (A) |
Water Inlet Pipe (m/m) |
Drain Pipe (A) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gas (kw) |
Electric (kw) |
Steam (kw) |
||||||||||||
| PDF-2000G(W) PDF-2000E(W) PDF-2000S(W) |
5300 × 820 (1120) × 1570 |
2000(4000) | 115(175) × 3 | 2.2(3.7) × 3 | 1100(1450) | 0.4 | 580(670) | 19.2(27.7) | 51.2(59.7) | 7(15.5) | 125(147) | 32 | 20 | 40 |
| PDF-2000DG(W) PDF-2000DE(W) PDF-2000DS(W) |
6600 × 820 (1120) × 1880 |
2000(4000) | 115(175) × 3 | 2.2(3.7) × 3 | 1100(1450) | 0.4 | 580(670) | 37.6(46.5) | 69.6(78.5) | 7.4(16.3) | 148(195) | 32 | 20 | 40 |
| PDF-2000DGE(W) PDF-2000DEE(W) PDF-2000DSE(W) |
6600 × 820 (1120) × 1880 |
2000(4000) | 115(175) × 3 | 2.2(3.7) × 3 | 1100(1450) | 0.4 | 580(670) | 38.4(39.2) | 70.4(79.3) | 8.2(17.1) | 148(195) | 32 | 20 | 40 |
- NOTE
- 1.Specifications are subject to change for quality improvement.
- 2.Water Pressure: Based on 1.5 kg/㎠
- 3.Steam: Based on 2.0 kg/㎠
- 4.( ) indicates Wide Type
