About Products
Technology and emotion at the same time!
POSEIDON auto dishwasher Co.,Ltd will try our best effort for the manufacturing of safe,
convenient and long lasting products, and we will dedicate ourselves to be recognized as best company
by thinking from the view of customers.

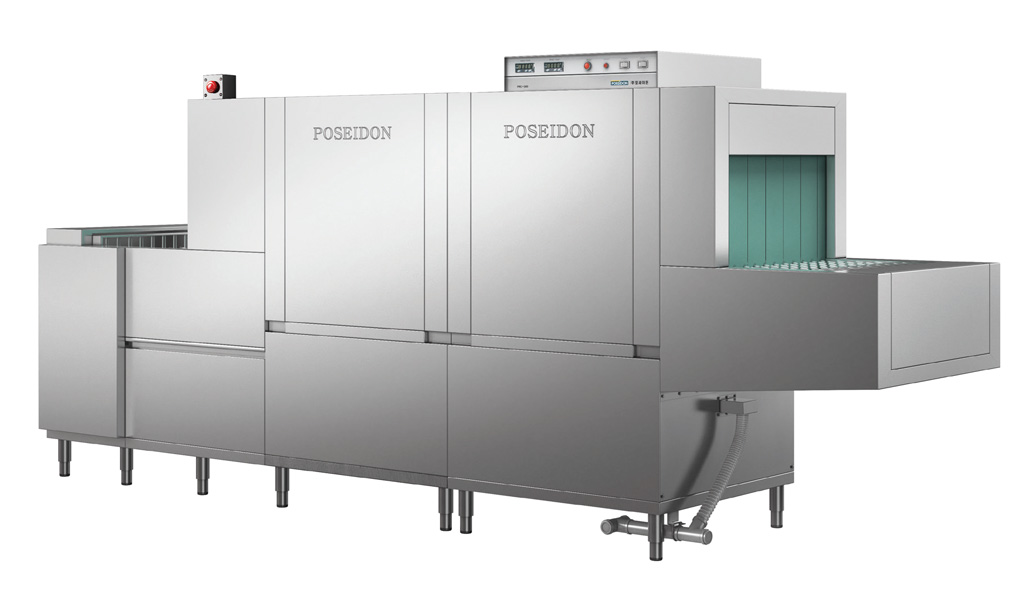

PMF-1000
The Mini Flight Dishwasher is designed for easy installation in compact spaces
and features simple one-touch operation for user convenience.
It uses stainless steel spray nozzles, comes with automatic water supply and heating,
and performs rinsing with a high-temperature sterilization method.
and features simple one-touch operation for user convenience.
It uses stainless steel spray nozzles, comes with automatic water supply and heating,
and performs rinsing with a high-temperature sterilization method.
- PMF - 1000, PMF - 1000D
- Safety Features : Equipped with an operation safety device and a door-open safety device.
- Types : Available in gas, electric, and steam models.

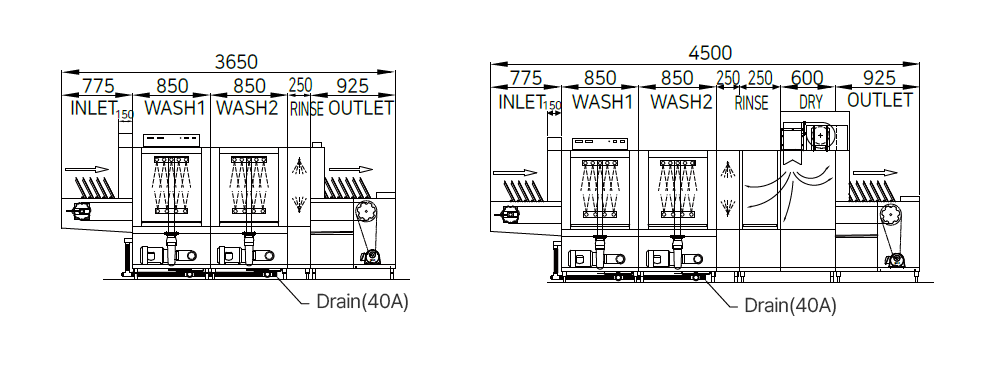

| Model | Size (L × W × H) |
Cleansing Capacity (food tray/Hr) |
Tank capacity (L) |
Washing Pump (Kw) |
Pump capacity (L/min) |
Operating Motor (Kw) |
Rinsing capacity (L/Hr) |
electrical capacity | Steam Consumption (Kg/Hr) |
Steam Pipe (A) |
Water Inlet Pipe (m/m) |
Drain Pipe (A) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gas (kw) |
Electric (kw) |
Steam (kw) |
||||||||||||
| PMF-1000G PMF-1000E PMF-1000S |
3650 × 640 × 1560 | 1000 | 90 × 2 | 1.5 × 2 | 900 × 2 | 0.2 | 480 | 9.4 | 33.4 | 3.2 | 84 | 25 | 20 | 40 |
| PMF-1000DG PMF-1000DE PMF-1000DS |
4500 × 640 × 1850 | 1000 | 90 × 2 | 1.5 × 2 | 900 × 2 | 0.2 | 480 | 21.8 | 45.8 | 3.6 | 100 | 25 | 20 | 40 |
- NOTE
- 1.These specifications are subject to change without notice for quality improvement.
- 2.Water pressure : 1.5kg/cm2
- 3.Steam pressure : 2.0kg/cm2
