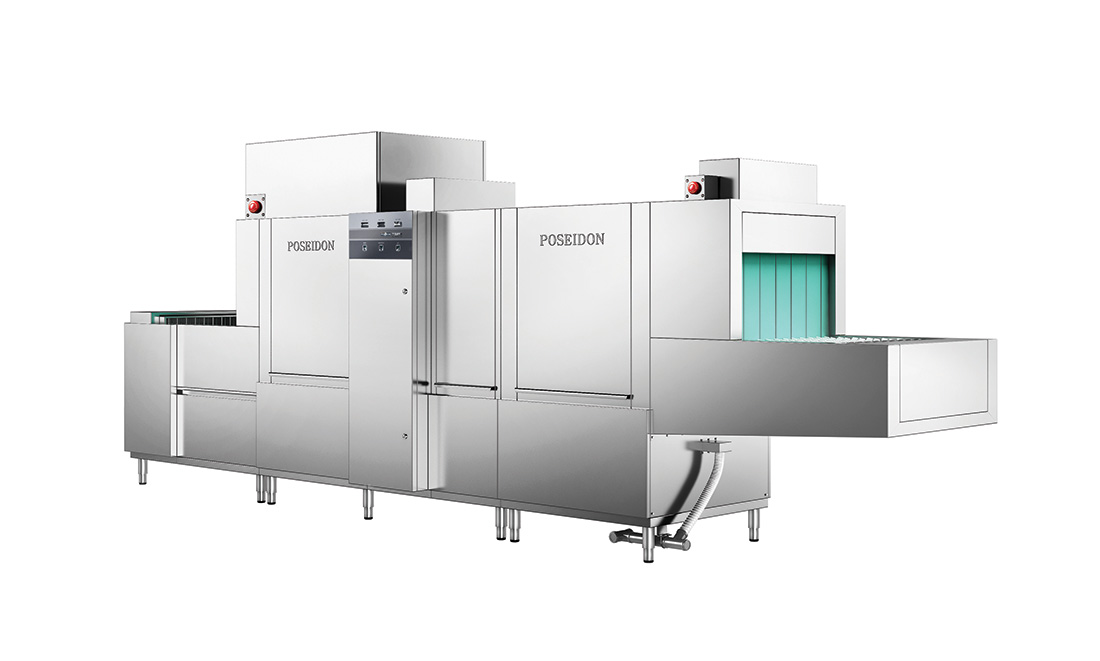

PDF-500
The Flight Dishwasher is designed to maximize space efficiency and can be manufactured in small to large capacities.
It features stainless steel spray nozzles, automatic water supply, and a built-in heating system,
with rinsing performed using a high-temperature sterilization method.
Operation is simple with one-touch controls, making it easy and convenient for anyone to use.
It features stainless steel spray nozzles, automatic water supply, and a built-in heating system,
with rinsing performed using a high-temperature sterilization method.
Operation is simple with one-touch controls, making it easy and convenient for anyone to use.
- Public Procurements ID
- 21772541 PDF-500G
- 21776591 PDF-500DG
- 24847547 PDF-500E
- 24847548 PDF-500DE
- 21776589 E/S-100
- PDF - 500 SERIES
- Safety Features : Equipped with an operation safety device and a door-open safety device.
- Types : Gas, Electric, or Steam models; optional Energy Recovery System.
| Model | Size (L × W × H) |
Cleansing Capacity (food tray(Hr)) |
Tank capacity (L) |
Washing Pump (Kw) |
Pump capacity (L/min) |
Operating Motor (Kw) |
Rinsing capacity (L/Hr) |
electrical capacity | Steam Consumption (Kg/Hr) |
Steam Pipe (A) |
Water Inlet Pipe (m/m) |
Drain Pipe (A) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gas (kw) |
Electric (kw) |
Steam (kw) |
||||||||||||

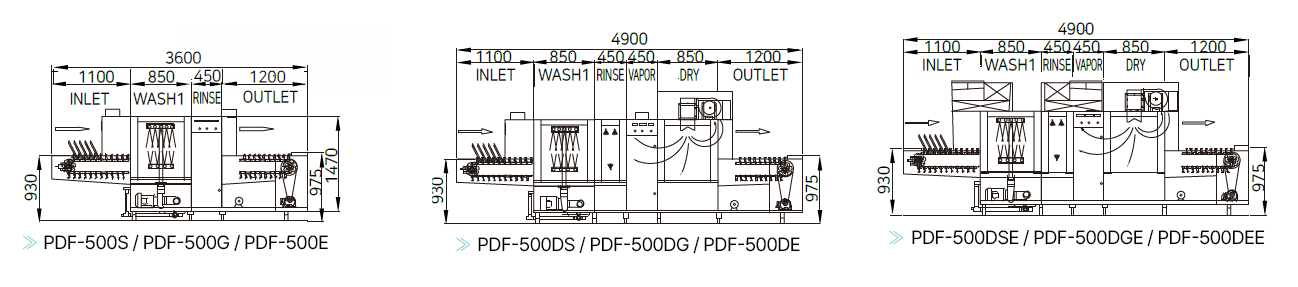

| PDF-500G(W) PDF-500E(W) PDF-500S(W) |
3600 × 820 (1120) × 1570 |
560 (1120) | 115 (175) | 2.2 (3.7) | 1100 (1450) | 0.2 | 500 (570) | 8.6 (12.1) | 40.6 (42.1) | 2.4 (3.9) | 90 (120) | 32 | 20 | 40 |
| PDF-500DG(W) PDF-500DE(W) PDF-500DS(W) |
4900 × 820 (1120) × 1880 |
560 (1120) | 115 (175) | 2.2 (3.7) | 1100 (1450) | 0.2 | 500 (570) | 27 (30.9) | 59 (62.9) | 2.8 (5.1) | 120 (155) | 32 | 20 | 40 |
| PDF-500DGE(W) PDF-500DEE(W) PDF-500DSE(W) |
4900 × 820 (1120) × 1880 |
560 (1120) | 115 (175) | 2.2 (3.7) | 1100 (1450) | 0.2 | 500 (570) | 27.8 (31.7) | 59.8 (63.7) | 3.6 (5.9) | 120 (155) | 32 | 20 | 40 |
- NOTE
- 1.Specifications are subject to change for quality improvement.
- 2.Water Pressure: Based on 1.5 kg/㎠
- 3.Steam: Based on 2.0 kg/㎠
- 4.( ) indicates Wide Type
