PDF-1000

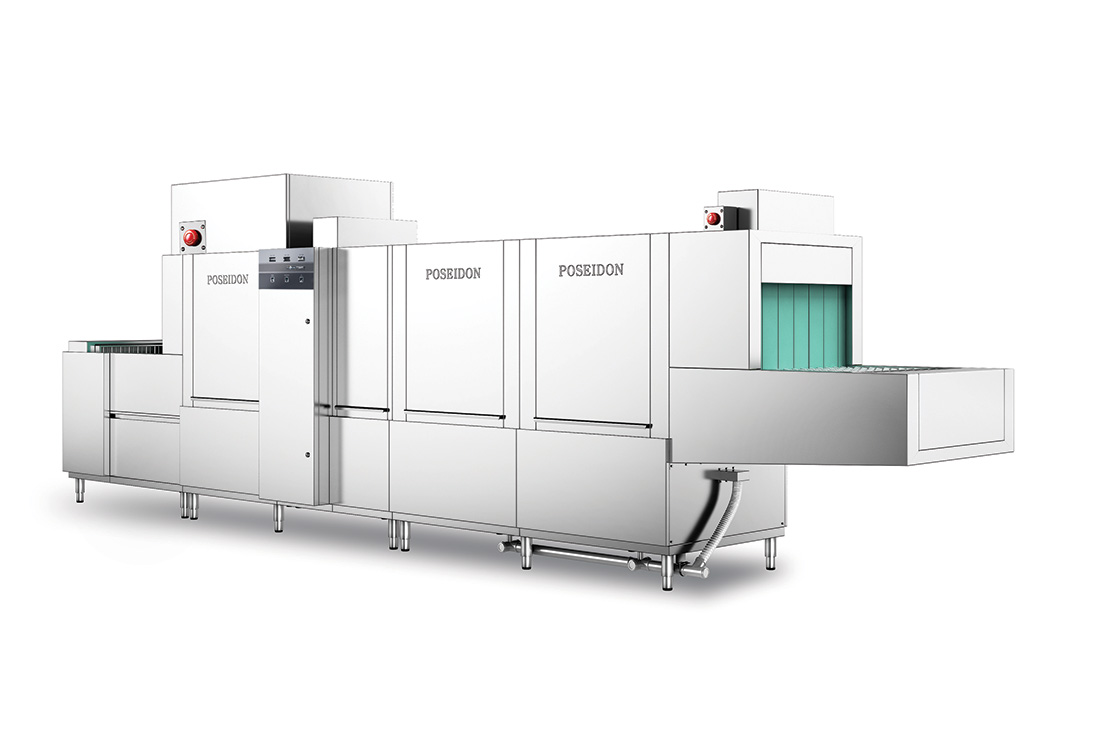

The Flight Dishwasher is designed to maximize space efficiency and can be manufactured in small to large capacities.
It features stainless steel spray nozzles, automatic water supply, and a built-in heating system,
with rinsing performed using a high-temperature sterilization method.
Operation is simple with one-touch controls, making it easy and convenient for anyone to use.
It features stainless steel spray nozzles, automatic water supply, and a built-in heating system,
with rinsing performed using a high-temperature sterilization method.
Operation is simple with one-touch controls, making it easy and convenient for anyone to use.
- Public Procurements ID
- 21772545 PDF-1000G
- 21776593 PDF-1000DG
- 24026501 PDF-1000E
- 24847549 PDF-1000DE
- 21776592 PDF-1000DS
- 21776589 E/S-100

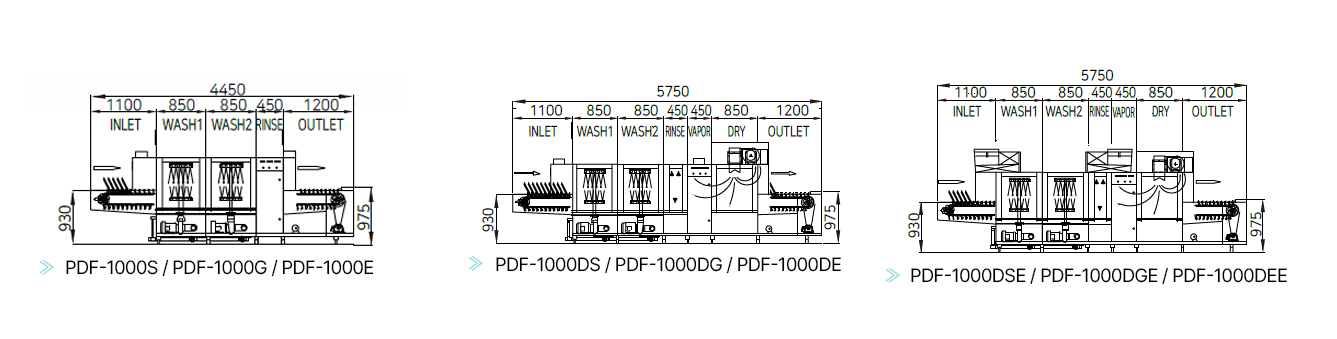

- PDF - 1000 SERIES
- Safety Features : Equipped with an operation safety device and a door-open safety device.
- Types : Gas, Electric, or Steam models; optional Energy Recovery System.
| Model | Size (L × W × H) |
Cleansing Capacity (food tray(Hr)) |
Tank capacity (L × Number of tanks) |
Washing Pump (Kw × Number of Pumps) |
Pump capacity (L/min) |
Operating Motor (Kw) |
Rinsing capacity (L/Hr) |
electrical capacity | Steam Consumption (Kg/Hr) |
Steam Pipe (A) |
Water Inlet Pipe (m/m) |
Drain Pipe (A) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gas (kw) |
Electric (kw) |
Steam (kw) |
||||||||||||
| PDF-1000G(W) PDF-1000E(W) PDF-1000S(W) |
4450 × 820 (1120) × 1570 |
1000(2000) | 115(175) × 2 | 2.2(3.7) × 2 | 1100(1450) | 0.4 | 500(570) | 11(16) | 43(48) | 4.8(7.8) | 90(120) | 32 | 20 | 40 |
| PDF-1000DG(W) PDF-1000DE(W) PDF-1000DS(W) |
5750 × 820 (1120) × 1880 |
1000(2000) | 115(175) × 2 | 2.2(3.7) × 2 | 1100(1450) | 0.4 | 500(570) | 29.4(34.8) | 61.4(66.8) | 5.2(8.6) | 120(155) | 32 | 20 | 40 |
| PDF-1000DGE(W) PDF-1000DEE(W) PDF-1000DSE(W) |
5750 × 820 (1120) × 1880 |
1000(2000) | 115(175) × 2 | 2.2(3.7) × 2 | 1100(1450) | 0.4 | 500(570) | 30.2(35.6) | 62.2(67.6) | 6(9.4) | 120(155) | 32 | 20 | 40 |
- NOTE
- 1.Specifications are subject to change for quality improvement.
- 2.Water Pressure: Based on 1.5 kg/㎠
- 3.Steam: Based on 2.0 kg/㎠
- 4.( ) indicates Wide Type
